Ti Am335x Arm Som for Gateway Applications

MYIR introduces an Linux-ready industry-oriented MYC-C335X-GW CPU Module powered by TI’s AM335x ARM Cortex-A8 processor (800MHz AM3354 by default) which features PowerVR™ SGX530 for 2D and 3D graphics acceleration.

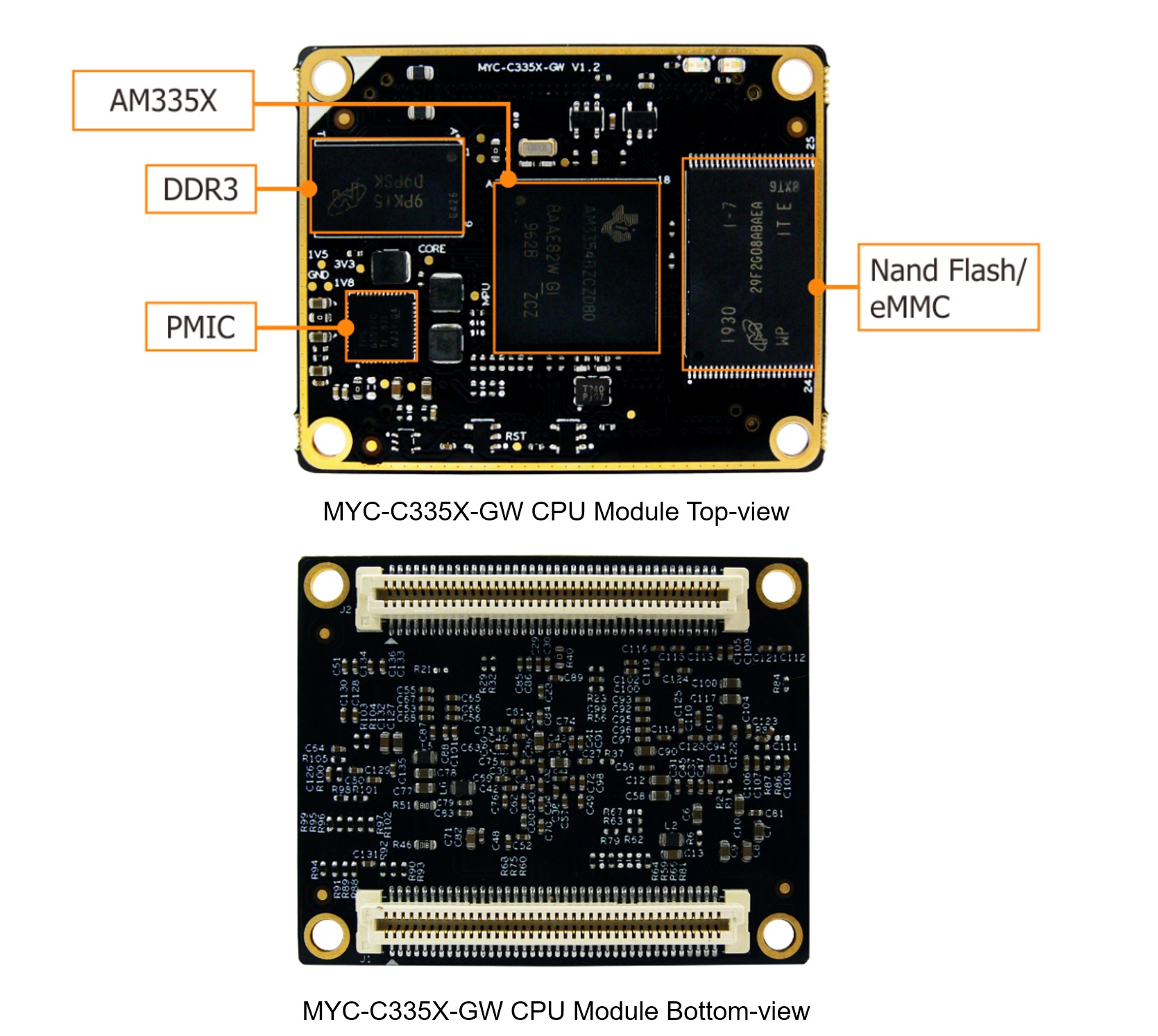

Measuring only 50mm by 40mm, the MYC-C335X-GW is the fourth AM335x CPU Module designed by MYIR especially for gateway applications. It integrates a DDR3L RAM memory, a Nand Flash or an eMMC Flash, EEPROM and PMIC. Two 0.8mm pitch 80-pin board-to-board expansion connectors are on the back of the module for interconnecting with a base board, thus providing an interface for the base board to carry out most of the I/O signals to and from the CPU module.

Ti Am335x Arm Som for Gateway Applications

MYIR offers MYD-C335X-GW Development Board for evaluating the MYC-C335X-GW CPU Module, its base board has extended a rich set of peripherals and interfaces such as RS485RS232, USB2.0 HOST, Gigabit EthernetSFPWiFi/Bluetooth, USB based Mini-PCIe interface for 4G LTE Module, Micro SD Card slotSIM card slotRGB LCD and LVDS interfacesJTAG, etc. The MYD-C335X-GW is a complete platform and solid reference design delivered with necessary accessories, detailed documentations, optional Camera and LCD modules which makes it ideal for evaluating and prototyping based on TI’s AM335x microprocessors. MYIR also offers design services to customize the base board or CPU module according to customers’ requirements.

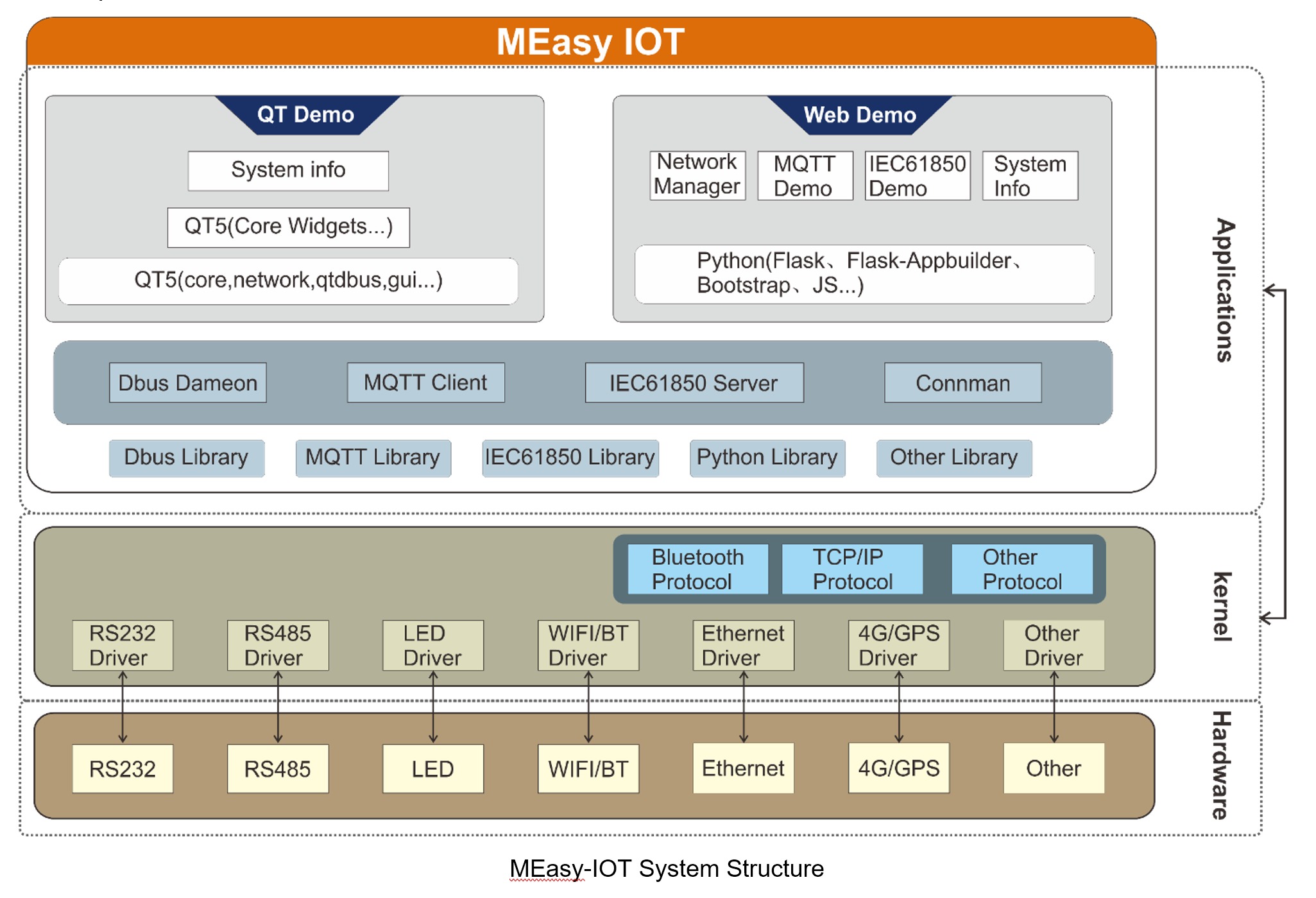

Based on Linux 4.14.67 kernel, MYIR has provided abundant software resources including kernel and driver source code as well as MYIR’ s MEasy IOT Demo to allow customer to get a good experience and development reference.

Ti Am335x Arm Som for Gateway Applications

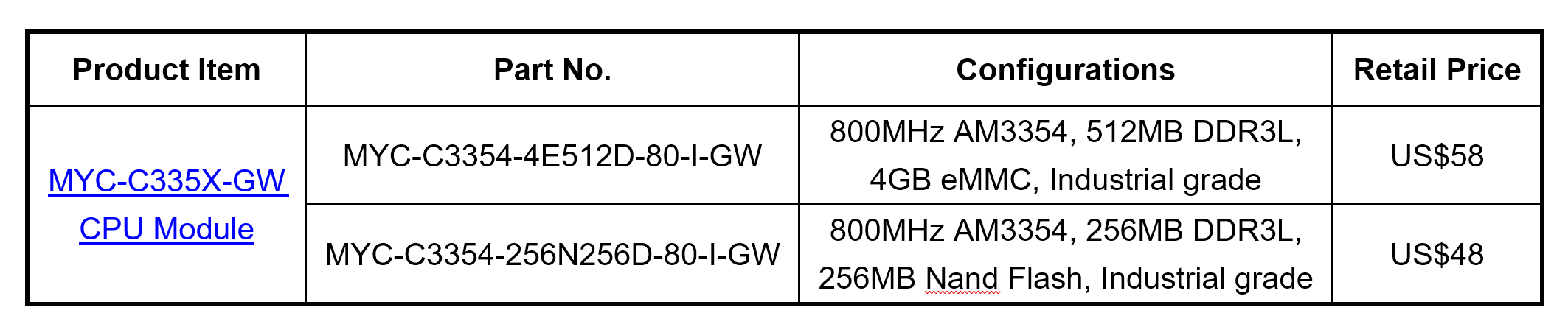

MYIR offers below standard parts for the CPU Module, other configurations (AM335x processor, RAM, Flash, industrial or commercial grade) can be customized and the CPU Module price can be lower to $26.80/pc according to configuration and quantity.

Source: Ti Am335x Arm Som for Gateway Applications
