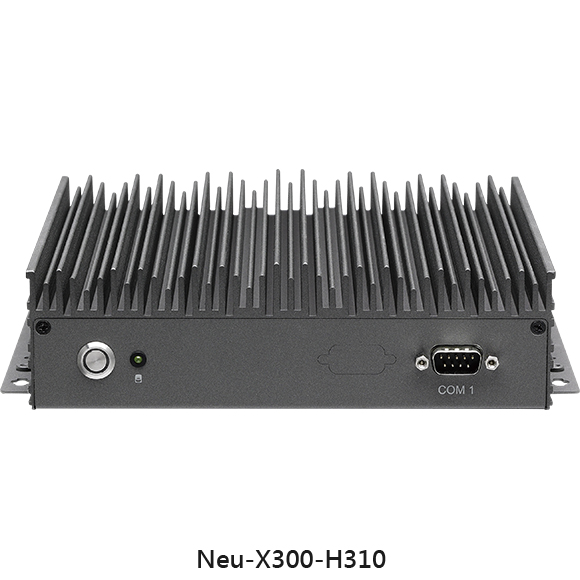

Neu-x300 – Edge Computing System Powered by 8th Generation Intel® Core™ Processor

NEXCOM has launched Neu-X300, a high performance fanless computer, powered with 8th Generation Intel® Core™ i-series processors. With its 190mm x 200mm x 54.4mm size, the modern-looking Neu-X300 uses a TPM2.0 IC to enhance cyber security. By specifically choosing an i5 or i7 processor, Neu-X300 is further equipped with vPRO remote management capability. And with its versatile I/O interface design, it’s ideally suited to meeting the demands of smart city and miscellaneous electronic applications, such as digital signage, drive-through systems, and retail solutions.

Neu-x300 – Edge Computing System Powered by 8th Generation Intel® Core™ Processor

Wide Range of High Performance CPU Options

Powered by 8th Generation Intel® Core™ Coffee Lake i3/i5/i7 socket CPU and Intel® UHD Graphics 630, Neu-X300 has exceptional processing abilities and can stream 3D visual effects. With the socket CPU, you’re able to determine and manage the level of CPU performance, based on business requirements, by easily replacing and upgrading from a wide range of Intel® 8th Generation i7/i5/i3 CPUs.

For the customer looking for streaming 2D/3D visual graphics, the Intel Core i3 is an excellent, budget-friendly choice. On the other hand, Core i5/i7 CPUs provides Turbo Boost to speed up tasks, achieving CPU benchmark scores 50% higher than i3s’. With facial identification and object detection systems, the Core i5/i7 CPU also suits the customer who demands more advanced computing performance, for smart cities and AI purposes.

Absolute Security and Easy Manageability

Neu-X300 is designed with both security and manageability in mind. It supports TPM 2.0 security mechanisms, which effectively reduce malicious attacks with greater crypto-agility. With its vPro technology, the Neu-X300 with i5/i7 CPU can additionally implement remote management, making operations more flexible. Used in chain stores’ drive-through services, for instance, the Neu-X300 could not only utilize the triple display capabilities for menus but also remote management to allow the command center to perform tasks like information updates and system reboots, rather than on-site. Moreover, NEXCOM offers its own PowerDigiS software to shorten deployment periods.

Main Features

  • 8th gen. Intel® Core™ socket type processor
  • HDMI 2.0 resolution 4K@60Hz
  • Storage M.2 M Key 2280
  • Support Vpro technology
  • Dual DDR4 SO-DIMM
  • TPM 2.0 IC on board
  • PCIe x16 slot for extra graphic card usage
  • Fanless design

Versatile I/O Interface

By reserving two RJ45 ports and one M.2 device for LAN, Wi-Fi, and Bluetooth modules, the Neu-X300 possesses excellent wireless transmission abilities, making it ideal for smart city gateway applications. The rich I/O interface, which includes three HDMI, four USB 3.0, and one COM port, also makes the Neu-X300 the perfect solution for varied digital applications. Parking payment machines, for instance, could utilize the multiple USB and COM ports to connect various peripheral devices, like receipt printers, barcode scanners, and image capture cameras. But the Neu-X300 is not just limited to the aforementioned applications, as it can be your solution for menu boards, self-ordering systems, interactive kiosks, transportation information boards, and so on.

Source: Neu-x300 – Edge Computing System Powered by 8th Generation Intel® Core™ Processor
